1. Support linerless paper printing, energy saving and environmental protection, improve quality and efficiency
2. Special anti-stick material of the machine body, avoiding the problem of paper sticking to the machine body effectively
3. Compared to common label printers, more labels can be printed per roll of paper
4.  Adapt to connect to various terminals to meet the diverse requirements of different customers
5. Supports automatic half-cut cutter to effectively prevent labels from falling into the machine.
1. Energy saving and environmental protection, support linerless paper printing, reduce paper waste printing speed can reach 6.7ips (170mm/s), shorten printing time no need to peel off the liner, improve printing efficiency
2. The machine body is made of special material for anti-stick treatment, which can effectively prevent the paper from sticking to the machine body when printing linerless labels ensure smooth printing operations and effectively improve the practicality and user experience of the equipment
3. Supports printing of labels of various lengths. Compared withcommonlabel paper, more labels can be printed per roll, which greatly reduces the frequency of changing paper rolls and further improves work efficiency and convenience
4. Fully considering the diversity and flexibility of customer needs, supporting USB, serial port, Ethernet port, cash register interface, becoming an ideal choice in various application scenarios
5. Equipped with automatic half-cut cutter, it simplifies the paper tearing process, ensures label quality, reduces maintenance costs, and improves production efficiency.

| Thermal Printer Specifications | |
|---|---|
| Printing Method | Thermal |
| Resolution | 203dpi |
| Maximum Width | 3.15'' (80mm) |
| Maximum Printing Speed | 6.7ips (170mm/s) (MAX) |
| Length | 0.79'' - 9.84'' (20mm - 250mm) |
| Sensors | |
| Sensor Type | Seam mark detection, black mark detection, paper removal detection, paper shortage detection, cover opening detection, head temperature detection |
| Media | |
| Type | Linerless Paper, Continuous Paper, Black Mark Paper (lower black mark) |
| Width (Label + Backing Paper) | 1.57'' - 3.15'' (40 - 80mm) |
| Thickness (Label + Backing Paper) | 0.0023'' - 0.0071'' (0.06 - 0.18mm) |
| Maximum Paper Roll Diameter | &phi3.15'' (&phi80mm) |
| Reel Inner Diameter | Label paper &phi0.5'' (&phi12.7mm) (MIN) other paper types are not limited |
| Paper Tearing Method | Automatic cutter |
| Processor & Memory | |
| Processor | 32-bit ARM MCU |
| RAM | 8MB |
| Flash | 4MB |
| Functions | |
| Buttons | Power switch, power button, FEED button |
| Indicator Lights | Supported |
| Buzzer | Buzzer tone |
| Other Features | Automatically identify paper, detect bad dots, and reprint when paper is out of stock |
| Communication Interface | |

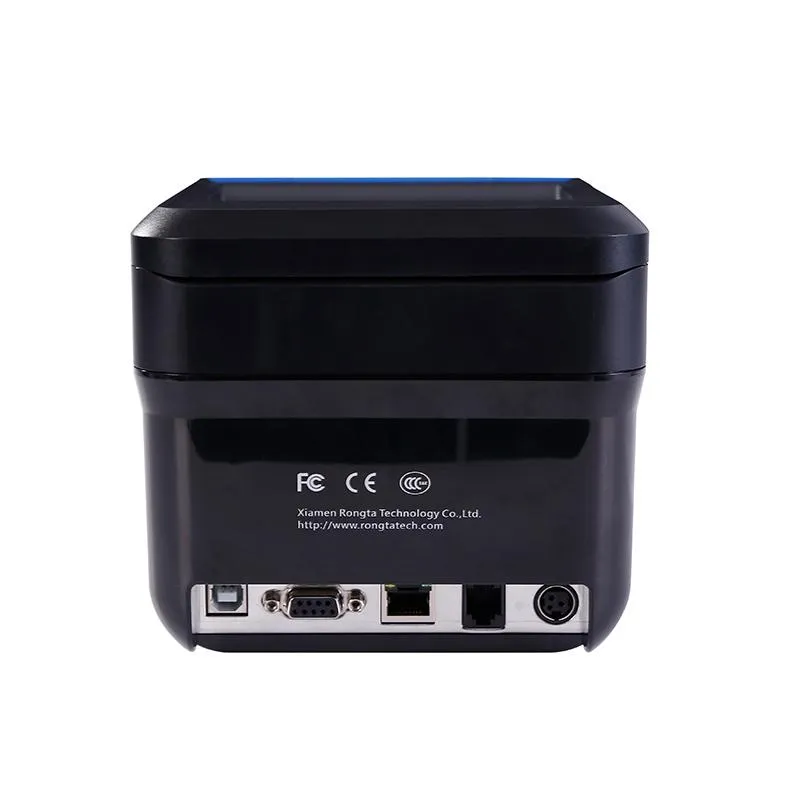

| Interfaces | USB + Serial Port + Ethernet Port + Cash Register Interface |
| Programming Language | TSPL |
| Fonts & Codes | |
| Built-in Fonts | ASCll Fonts: 5x9, 7x11, 10x18, 15x28, 13x26, 40x60, 13x21, 10x12, 14x20, 16x24, 24x32, 36x48, 14x19, 21x27, 14x25, 12x24 Chinese: 24×24, 16x16 |
| Code Page | CP437, CP850, CP852, CP860, CP863, CP865, CP866, WPC1250, WPC1251, WPC1252, WPC1253, WPC1254 |
| Barcode | 1D: Code39, Code39C, I25, Code93, ITF25, EAN128, Code128, Codabar, EAN-8, EAN8+2, EAN8+5, EAN-13, EAN13+2, EAN13+5, UPC-A, UPCA+2, UPCA+5, UPC-E, UPCE+2, UPCE+5, MSIC, ITF14, EAN14, Code11 2D: QRCODE, PD417 (optional) |
| Software | |
| Driver | XP, Win7, Win8, Win10, Win11, iOS, Android, Linux, MacOS |
| SDK | Android, iOS, Windows |
| Label Design | Barcode label editing software (PC) |
| Power Adapter | |
| Input | AC 100-240V, 50/60Hz |
| Output | DC 24V / 2.5A |
| Environmental Parameters | |
| Work | Temperature: 32-122℉ (0-50℃) Humidity: 20-90% (non-condensing) |
| Storage | Temperature: -4-131℉ (-20-55℃) Humidity: 5-95% (non-condensing) |
| Physical Parameters | |
| Dimensions (L × W × H) | 146 × 196 × 140 mm |
| Weight | 1.42kg |
| Accessories | |
| Standard | Power adapter, USB cable, serial cable, quick installation guide, power cable (international) |
