Save: 600৳

N.B. Image may vary with product

Netum W28 High-Speed Wireless 2D Barcode Scanner

IN STOCK Regular Price 5,600 ৳ Cash Price 5,000 ৳ SKU: 34808 Warranty: One Year Warranty Home Delivery: Yes
Monthly EMI
3 Months EMI ৳ 1867
6 Months EMI ৳ 933
9 Months EMI ৳ 622
12 Months EMI ৳ 467

Product Highlights / Key Features

W28 High-Speed Wireless 2D Barcode Scanner

1D/2D

Wireless 2.4G+ Bluetooth Support

Battery Capacity:1200mAh

Sensor Resolution640×480

See Specifications
Description Specification

Description

Barcode Scanner Specification

1 Scan Performance

  • 1.1.1 Sensor: CMOS
  • 1.1.2 Sensor Resolution: 640 × 480
  • 1.1.3 Aiming LED: White glare
  • 1.1.4 Decoding Accuracy:
    • 1D: &ge 4mil (Code 39)
    • 2D: &ge 7mil (QR Code)
  • 1.1.5 Scanning Angle:
    • Skew tolerance: ±60°
    • Pitch tolerance: +60°
    • Roll tolerance: 360°
  • 1.1.6 Field of View:
    • Horizontal: 45° (H)
    • Vertical: 34° (V)
  • 1.1.7 Supported Barcode Types:
    • 2D: QR Code, Data Matrix, PDF417
    • 1D: Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, ISSN, Code 93, UCC/EAN 128, GS1 Databar, Matrix 2 of 5, Code 11, Industrial 2 of 5, Standard 2 of 5, AIM128, Plessey, MSI-Plessey
  • 1.1.8 Decode Ranges:
    • Code 128: 45mm &ndash 175mm (5mil, 14 bytes)
    • EAN-13: 45mm &ndash 350mm (15mil)
    • Code 39: 65mm &ndash 240mm (10mil, 14 bytes)
    • QR Code: 45mm &ndash 100mm (10mil, 181 bytes)
    • Data Matrix: 35mm &ndash 90mm (10mil, 158 bytes)
  • 1.1.9 Minimum Contrast: &ge 30%

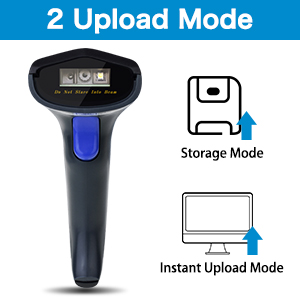

  • 1.2 Scanning Modes: Key trigger, continuous scanning, auto-sensing scanning

2 Wireless & Power Specifications

  • 2.1 Connectivity: 2.4G Wireless + Bluetooth (supports v2.0 / v3.0 / v4.0 / v4.2) + Wired USB
  • 2.2 Communication Range:
    • 2.4G: 65m line-of-sight
    • Bluetooth: 20m line-of-sight
  • 2.3 Battery Capacity: 1200mAh
  • 2.4 Charging Time: Approx. 3&ndash4 hours
  • 2.5 Auto-Standby: Activates after 3 minutes of inactivity
  • 2.6 Charging Input: 5V ⎓ 2A

3 Electrical Characteristics

  • 3.1 Operating Voltage: DC 5V ±5%
  • 3.2 Operating Current: 240mA
  • 3.3 Standby Current: 0.6&muA

4 Physical Characteristics

  • 4.1 Dimensions (L × W × H): 170 × 65 × 70 mm
  • 4.2 Weight: Approx. 158g
  • 4.3 Cable Length: 1.2m
  • 4.4 Interface: USB
  • 4.5 Color: Black
  • 4.6 Housing Material: ABS + TPU
  • 4.7 Feedback: Buzzer + LED indicator

5 Environmental Requirements

  • 5.1 Operating Temperature: -10°C to +50°C
  • 5.2 Storage Temperature: -20°C to +70°C
  • 5.3 Storage Humidity: 5% &ndash 95% (non-condensing)
  • 5.4 Ambient Light Tolerance: 0 &ndash 100,000 lux

Specification

1

Scan Performance

1.1.1

sensor：

CMOS

1.1.2

Sensor Resolution：

640×480

1.1.3

Aiming LED：

White glare

1.1.4

Accuracy:

1D&ge4mil Code39   2D&ge7mil QR Code

1.1.5



Scanning Angle：

Skew tolerance:±60°

Pitch tolerance: +60°

Roll tolerance: 360°

1.1.6

Fiel of View

Horizontal: 45°（H）,     vertical:  34° (V)

1.1.7

Vertical：

2D QR Code, Data Matrix, PDF417

1D Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar,

Interleaved 2 of 5, ITF-6, ITF-14, ISBN, ISSN, Code 93, UCC/EAN[1]128, GS1 Databar, Matrix 2 of 5, Code 11, Industrial 2 of 5,

Standard 2 of 5, AIM128, Plessey, MSI-Plessey

1.1.8

Decode Ranges：

Code128            45mm-175mm(5mil 14 byte)

EAN-13             45mm-350mm (15mil)

Code39     65mm-240mm(10mil 14 byte）

QR        45mm-100mm (10mil 181 byte）

Data Matrix        35mm-90mm (10mil 158 byte)

1.1.9

Contrast:

&ge30%

1.2

Scanning Method:

Key scanning, continuous scanning, self-sensing scanning...

2

Wireless parameter

2.1

Wireless parameter:

Wireless 2.4G+ Bluetooth (support protocol 2.0, 3.0, 4.0, 4.2) + wired transmission

2.2

2.4G communication distance::

65m Visual distance

Bluetooth communication distance::

20m Visual distance

2.3

Battery Capacity:

1200mAh

2.4

Charging time:

About 3-4 hours

2.5

Standby time:

3 minutes to standby

2.6

Charging input:

5V 2A

3

Electrical characteristics

3.1

Operating Voltage：

DC 5V±5％

3.2

Working current：

240mA

3.3

Standby current：

0.6&muA

4

Physical characteristics

4.1

Dimension:

L*W*H (mm): 170*65*70mm

4.2

weight:

&asymp158g

4.3

Wire Length：

1.2m

4.4

Support interface：

USB

4.4

Color:

Black

4.5

Materials：

ABS+TPU

4.6

Prompt mode：

Buzzer, LED indicator

5

User Environment

5.1

Use environment:

-10°C-50°C

5.2

Storage temperature:

-20°C-70°C

5.3

Storage humidity:

5%-95%（non-condensing）

5.4

Ambient Light:

0~100000 LUX
