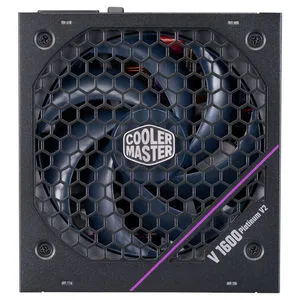

N.B. Image may vary with product
| Specification | Details |
|---|---|
| Brand | Cooler Master |
| Model | MPZ-G002-AFAP-BUS |
| Color | Black |
| Type | ATX 12V Ver. 3.1 |
| Maximum Power | 1600 W |
| Fans | 135 mm LDB (Mobius FAN) |
| PFC | Active |
| Max PSU Length | 160 mm |
| Modular | Full Modular |
| Power Good Signal | 100&ndash500 ms |
| Hold-up Time | 16 ms |
| Efficiency | &ge 92% @ Typical Load |
| Energy Efficiency | 80 PLUS PLATINUM Certified |
| Protection | OPP / OVP / OTP / OCP / SCP / UVP / Surge & Inrush Protection |
| Input Voltage | 100&ndash240 V |
| Input Frequency Range | 50/60 Hz |
| Input Current | 12&ndash6 A |
| Output | +3.3V@20A, +5V@20A, [email protected], [email protected], +12V@3A |
| MTBF | >100,000 Hours |
| Approvals | cTUVus, TUV, CE, FCC, BSMI, CCC, EAC, RCM, UKCA, RoHS2.0 / BIS, KC (Region-specific) |
| Connectors | ATX 24 Pin x1 = 1x (650 mm) EPS 4+4 Pin x1 = 1x (650 mm) EPS 8 Pin x1 = 1x (650 mm) SATA x16 = 2x (500+120+120+120 mm) Peripheral 4 Pin x4 = 1x (500+120+120+120 mm) PCI-e 6+2 Pin x5 = 5x (500 mm) 12VHPWR x2 = 2x (650 mm) |
| Features | &bull Advanced Heat Dissipation: Purple anodized heat sink with bevel cuts enhances cooling. &bull Dual Durable 90° 12v-2X6 Cables: PCIe 5.0 connector for improved safety. &bull ATX 3.1 Cables: Delivers up to 600W per cable, 1200W total output. &bull 80+ Platinum Efficiency: Interleaved PFC reduces power loss and ripple. &bull Fully Modular: Reduces clutter, improves airflow. &bull Mobius Fan: Ultra-quiet, oil-reflow, ring blade design, advanced airflow. &bull Oil Reflow: Provides continuous lubrication to extend fan lifespan. &bull Loop Dynamic Bearing: Thick oil coating ensures stable performance. &bull Zero Speed Mode: Lowers noise and improves airflow at higher RPM. |
