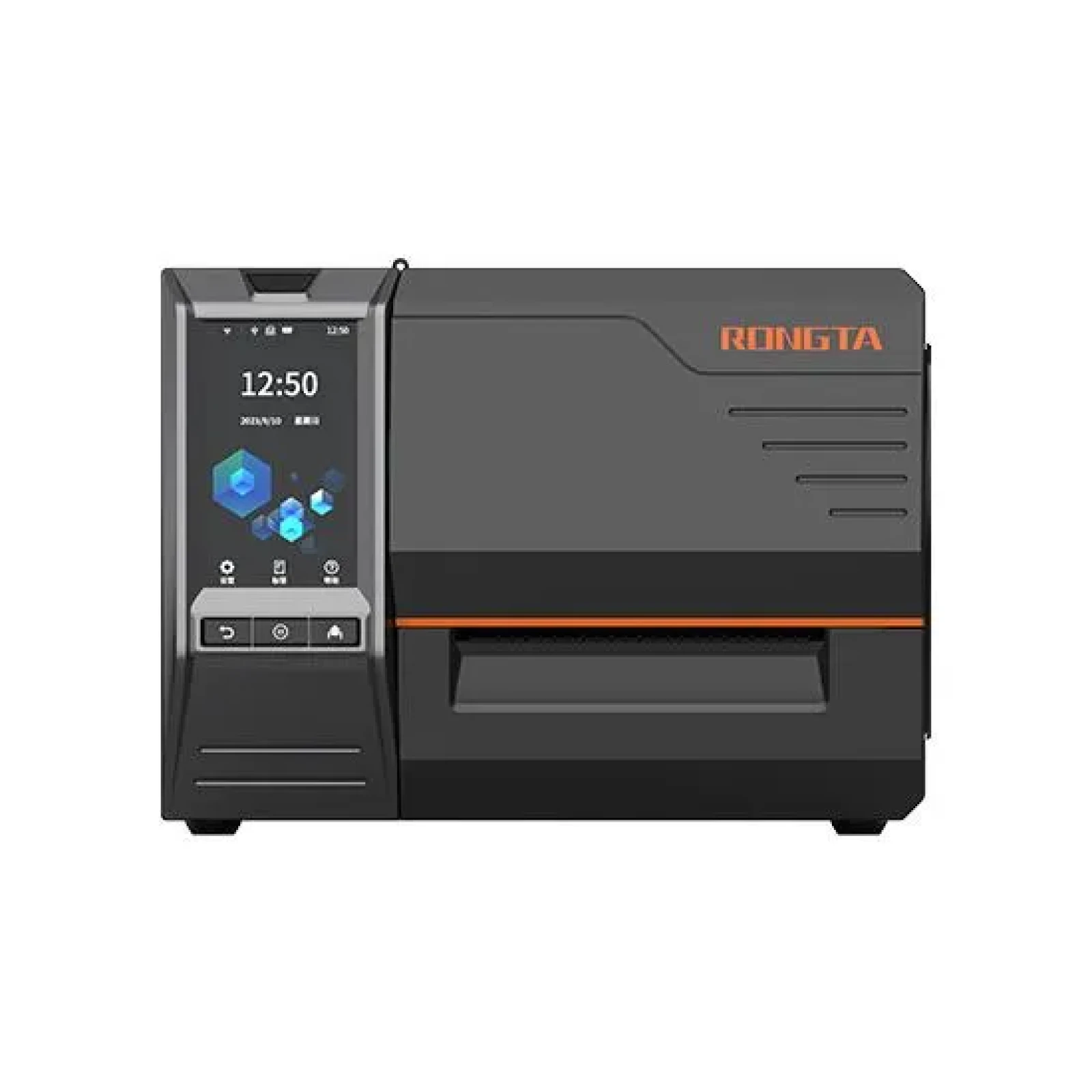

N.B. Image may vary with product
1. Suitable for Light Industries, long standby and full printing
2. Supports both thermal transfer and direct thermal printing modes, capable of printing on a variety of materials
3. Can view and set theprinterparameters
4. 4.3'' color touch display
5. Long-timeuninterruptedprinting
6. Built-in templates, support for offline printing
7. Meet the needs of users in various industries.
. Supportsboth thermal transfer and direct thermal printing modes to meet various scenario requirements, capable of printing on a variety of materials including: clothing tags, wash care labels, product labels, copper plate jewelry labels, thermal labels, electronic waybills, and silver self-adhesive labels, etc., with clear and durable printing results, satisfying diverse printing needs."
. Equipped with automatic paper recognition(continuous paper, black mark paper, folded paper), bad spot detection,reprint when paper runs out,abnormal alarms.
. 4.3&rsquo&rsquo color touch display, supports friendly menu settings, user experience more intuitive, can view and set the printer parameters, display status, alarms, test, etc.
. Supports long-duration continuous printing to ensure uninterrupted printing. Equipped with Bartender barcode label editing software
. Built-in templates, support for offline printing, and support for importing data or templates via a USB drive, offering higher application adaptability.
| Printer Specifications | |
|---|---|
| Printing Method | Thermal transfer / Direct Thermal |
| Resolution | 203dpi / 300dpi (optional) |
| Maximum Width | 4.23'' (108mm) |
| Maximum Speed | 203: 10ips (250mm/s) 300: 8ips (200mm/s) (optional) |
| Length | 0.39'' - 157.48'' (10 - 4000mm) |
| Media | |
| Type | Label Paper (including Hazardous Waste Labels), Continuous Paper, Black Mark Paper, Folded Paper |
| Width | 0.79'' - 4.65'' (20 - 118mm) |
| Thickness | 0.0023'' - 0.059'' (0.06 - 1.5mm) |
| Paper Roll Diameter | &phi5.98'' (&phi152mm) |
| Paper Roll Inner Diameter | &phi1.5'' (&phi38.1mm) (MIN) |
| Ribbon | |
| Ribbon Outer Diameter | &phi2.76'' (&phi70mm) (MAX) |
| Ribbon Length | 11.81'' (300m) |
| Ribbon Width | 4.33'' (110mm) |
| Ribbon Core Inner Diameter | &phi1'' (&phi25.4mm) (MIN) |
| Cutter Method | Manual Tear-off |
| Processor | ARM Cortex-A7 MPcore |
| Functions | |
| Button | Power Switch, Power (FEED) Button, Paper Bin Open Button, Menu Button, Return Button |
| Indicator Light | Tricolor Light |
| Buzzers | Buzzers Voice Alarm |
| Other | Automatic Paper Recognition, Bad Spot Detection, Reprint When Paper is Out |
| Communication | |
| Interface | USB + Serial + Network |
| Programming Language | ZPL, TSPL |
| Fonts & Codes | |
| Fonts | ASCll, Font: 5x9, 7x11, 10x18, 15x28, 13x26, 40x60, 13x21, 10x12, 14x20, 16x24, 24x32, 36x48, 14x19, 21x27, 14x25, 12x24 China & Japan & Korean Vector Font |
| Code Page | CP437, CP850, CP852, CP860, CP863, CP865, CP866, WPC1250, WPC1251, WPC1252, WPC1253, WPC1254 |
| One-Dimensional Barcode | Code39, Code39C, CodeI25, Code93, ITF25, EAN128, Code128, Codabar, EAN-8, EAN8+2, EAN8+5, EAN-13, EAN13+2, EAN13+5, UPC-A, UPCA+2, UPCA+5, UPC-E, UPCE+2, UPCE+5, MSIC, ITF14, EAN14, Code11 |
| Two-Dimensional Code | QRCODE, PD417, Maxicode, DateMatrix, Aztec |
| Software | |
| Driver | Windows 7 / 8 / 10, Linux, MAC |
| SDK | Windows, Linux |
| Label Design | Bartender Barcode Label Printing Software, Barcode Label Editing Software (PC) |
| Power | |
| Input Power | AC 100-240V, 50/60Hz |
| Environmental Parameters | |
| Working Conditions | Temperature: 32&ndash104℉ (0&ndash40℃) Humidity: 20&ndash85% (non-condensing) |
| Storage Conditions | Temperature: 14&ndash140℉ (-10&ndash60℃) Humidity: 5&ndash85% (non-condensing) |
| Physical Parameters | |
| Size | L362mm × W272.3mm × H202.7mm |
| Weight | 10.3kg |
| Accessories | |
| Standard Features | Power Cord, USB Cable, Serial Cable, Warranty Card, Manual |
