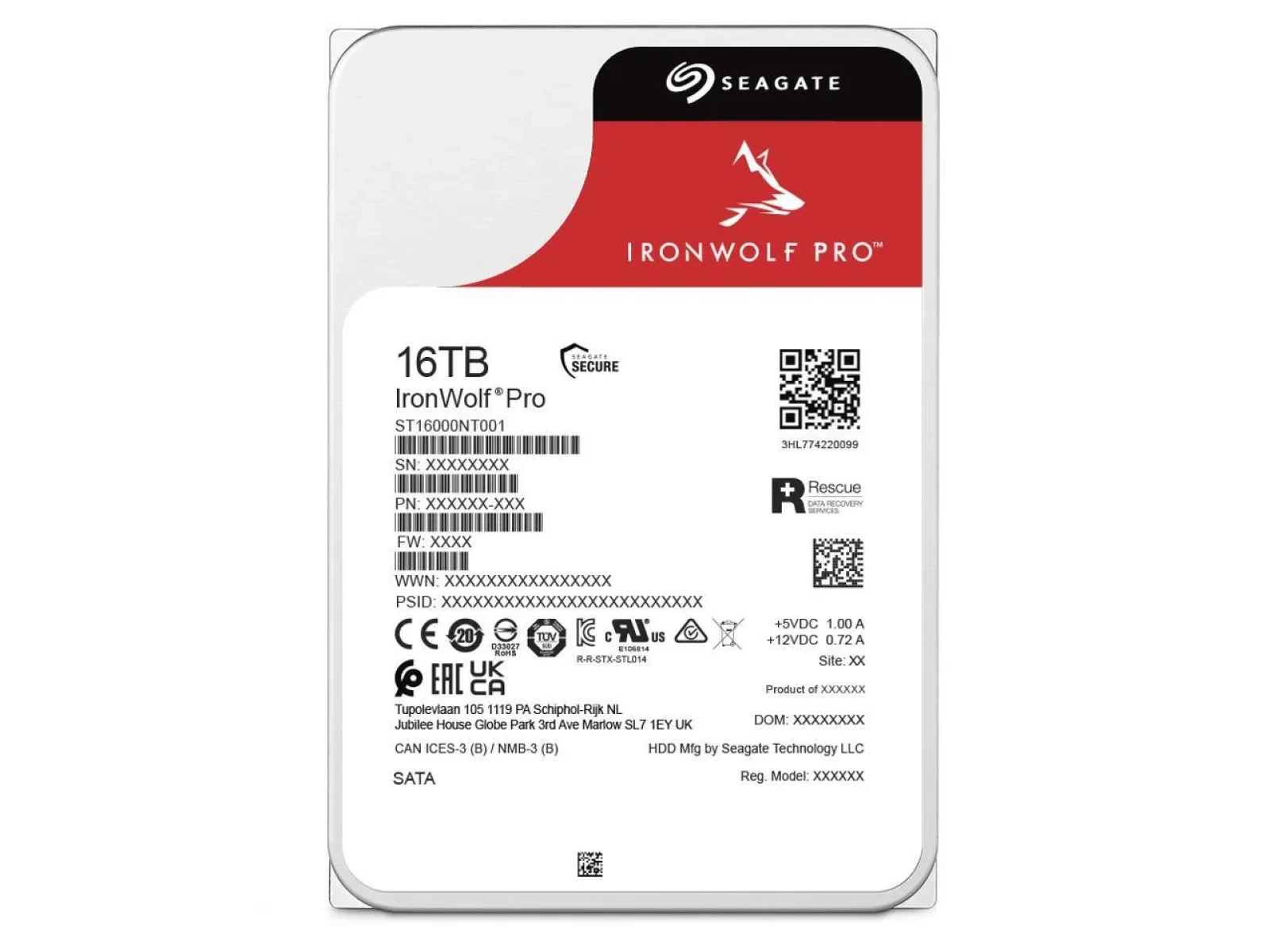

Designed to deliver performance, reliability, and dependability in multi-bay, multi-user RAID and NAS environments within commercial and enterprise settings, the 16TB IronWolf Pro 7200 rpm SATA III 3.5" Internal NAS HDD from Seagate is built to withstand 24/7 operation, or 8760 hours per year. This 16TB drive has been equipped with a SATA III 6 Gb/s interface, a rotational speed of 7200 rpm, a 3.5" form factor, and a 256MB cache, providing users with ample storage capacity with data transfer speeds of up to 270 MB/s. The IronWolf Pro also has an MTBF rating of 2.5 million hours and a workload rate of up to 550TB per year. Seagate's AgileArray technology provides dual-plane balancing, time-limited error recovery (TLER), and rotational vibration (RV) sensors to deliver enhanced RAID performance. Included is a limited 3-year Data Recovery Service that helps you retrieve damaged data in the event of a mechanical error, accident, or natural disaster, and overall protection is provided by a limited 3-year warranty.
High Performance
All-CMR (conventional magnetic recording) portfolio enables consistent, 24/7 performance, allowing users to access data virtually anytime, anywhere.
High Dependability
Up to a 550TB per year workload rating, a 2.5 million hours MTBF, and a limited 3-year warranty for a solid total cost of ownership (TCO).
Peace of Mind with Data Recovery
Seagate provides complimentary Rescue Data Recovery Services for three years, giving users a hassle-free, zero-cost data recovery experience.
IronWolf Health Management
Helps protect data with prevention, intervention, and recovery recommendations to ensure peak health.
Optimized for NAS
Seagate's AgileArray technology provides dual-plane balancing, time-limited error recovery (TLER), and rotational vibration (RV) sensors to deliver top RAID performance in multi-bay environments.
| Storage Specifications | |
|---|---|
| Total Installed Storage | 16 TB |
| Drive Type | SATA III / 3.5" HDD (7200 rpm) |
| Read Speed | Maximum: 270 MB/s |
| Write Speed | Maximum: 270 MB/s |
| Encryption Support | No |
| Mean Time Between Failures (MTBF) | 2.5 Million Hours |
| Endurance (Total Bytes Written) | 550 TB |
| Electrical | |
| Power Draw | 7.6 W (Active) / 5.0 W (Idle) / 1.0 W (Standby) |
| Input Power | 12 VDC at 2 A |
| General | |
| Operating Conditions | 32 to 97°F / 0 to 65°C |
| Operating Shock | 50 G / 2.0 ms |
| Storage Conditions | -40 to 158°F / -40 to 70°C |
| Dimensions | 5.79 x 4.01 x 1.03" / 146.99 x 101.85 x 26.11 mm |
| Weight | 1.5 lb / 670 g |
