N.B. Image may vary with product

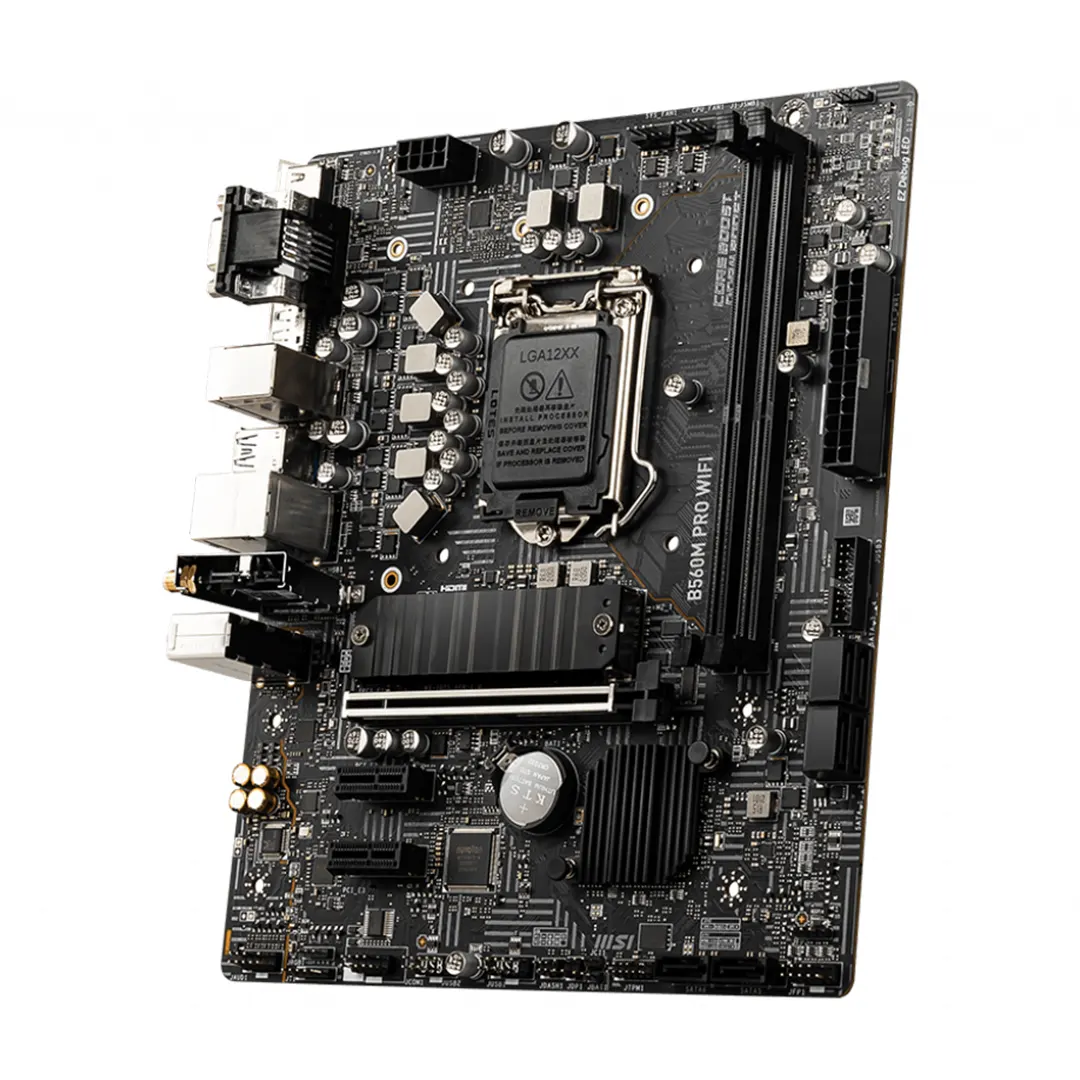

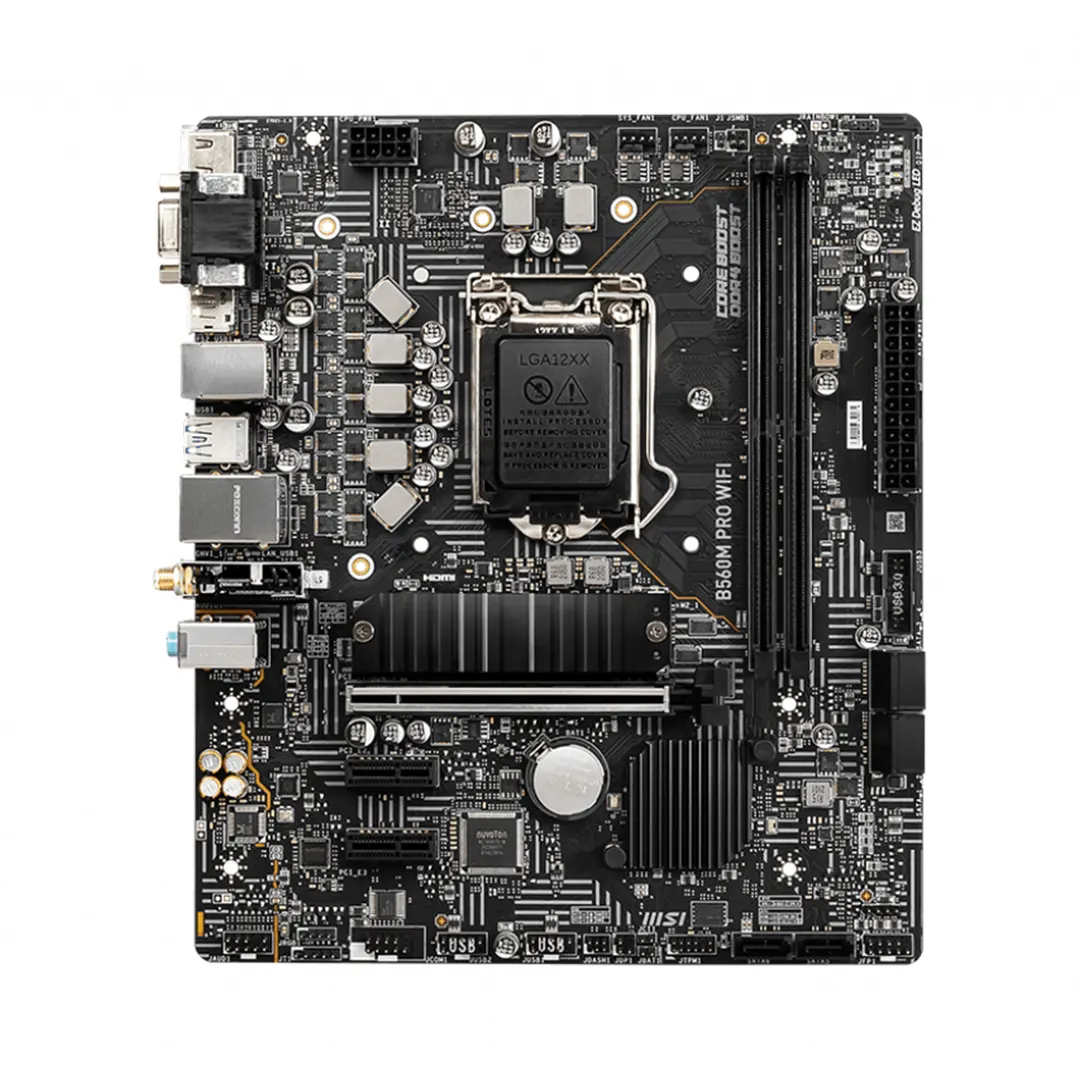

MSI B560M PRO-VDH WIFI Intel 10th And 11th Gen Micro ATX Motherboard is just what you need. This motherboard supports 10th Gen Intel Core, 11th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1200 socket. It also supports DDR4 Memory, up to 5200(OC) MHz.
With its premium layout and digital power design, the MSI B560M PRO-VDH WIFI Intel 10th And 11th Gen Micro ATX Motherboard is able to support more cores and provide better performance. Additionally, its DDR4 Boost technology delivers pure data signals for the best performance and stability. And with its PCIe 4.0 and Lightning Gen4 x4 M.2 with M.2 Shield Frozr, you'll experience lightning-fast speeds.
This motherboard also comes with an upgraded network solution for professional and multimedia use. Its 2.5G LAN with LAN Manager and Intel Wi-Fi 6 AX Solution delivers a secure, stable, and fast network connection. And with its Audio Boost, you'll be able to reward your ears.
So if you're looking for a top-of-the-line motherboard that supports the latest generation of processors, the MSI B560M PRO-VDH WIFI Intel 10th And 11th Gen Micro ATX Motherboard is just what you need.
The latest price of MSI B560M PRO-VDH WIFI Intel 10th and 11th Gen Micro ATX Motherboard in Bangladesh is ৳11,500. You can buy the MSI B560M PRO-VDH WIFI Intel 10th and 11th Gen Micro ATX Motherboard at the best price from our website or visit any find your nearest Binary Logic showroom. Follow us on Facebook For Regular updates & offers.
| CPU (MAX SUPPORT) | i9 |
| SOCKET | 1200 |
| CHIPSET | Intel® B560 Chipset |
| DDR4 MEMORY | 5200(OC) / 5066(OC) / 5000(OC) / 4800(OC) / 4600(OC) / 4533(OC) / 4400(OC) / 4266(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3333(OC) / 3200(JEDCE & POR) / 3000(JEDCE & POR) / 2933(JEDCE & POR) / 2800(JEDCE & POR) / 2666(JEDCE & POR) / 2400(JEDCE & POR) / 2133(JEDCE & POR) MHz |
| MEMORY CHANNEL | Dual |
| DIMM SLOTS | 2 |
| MAX MEMORY (GB) | 64 |
| PCI-E X16 | 1 |
| PCI-E GEN | Gen4 |
| PCI-E X1 | 2 |
| SATAIII | 6 |
| M.2 SLOT | 1 |
| TPM (HEADER) | 1 |
| LAN | 1x Realtek® 8125B 2.5Gbps LAN controller |
| WIFI & BLUETOOTH | Intel® Wi-Fi 6 AX201, Bluetooth 5.1 |
| USB 3.2 PORTS (FRONT) | 2(Gen 1, Type A) |
| USB 3.2 PORTS (REAR) | 4(Gen 1, Type A) |
| USB 2.0 PORTS (FRONT) | 4 |
| USB 2.0 PORTS (REAR) | 2 |
| SERIAL PORTS(FRONT) | AUDIO PORTS (REAR) |
| Realtek® ALC897 Codec | 1 |
| VGA | 1 |
| HDMI | 1 |
| DIRECTX | 12 |
| FORM FACTOR | MATX |
| OPERATING SYSTEM | Support for Windows® 10 64-bit |
