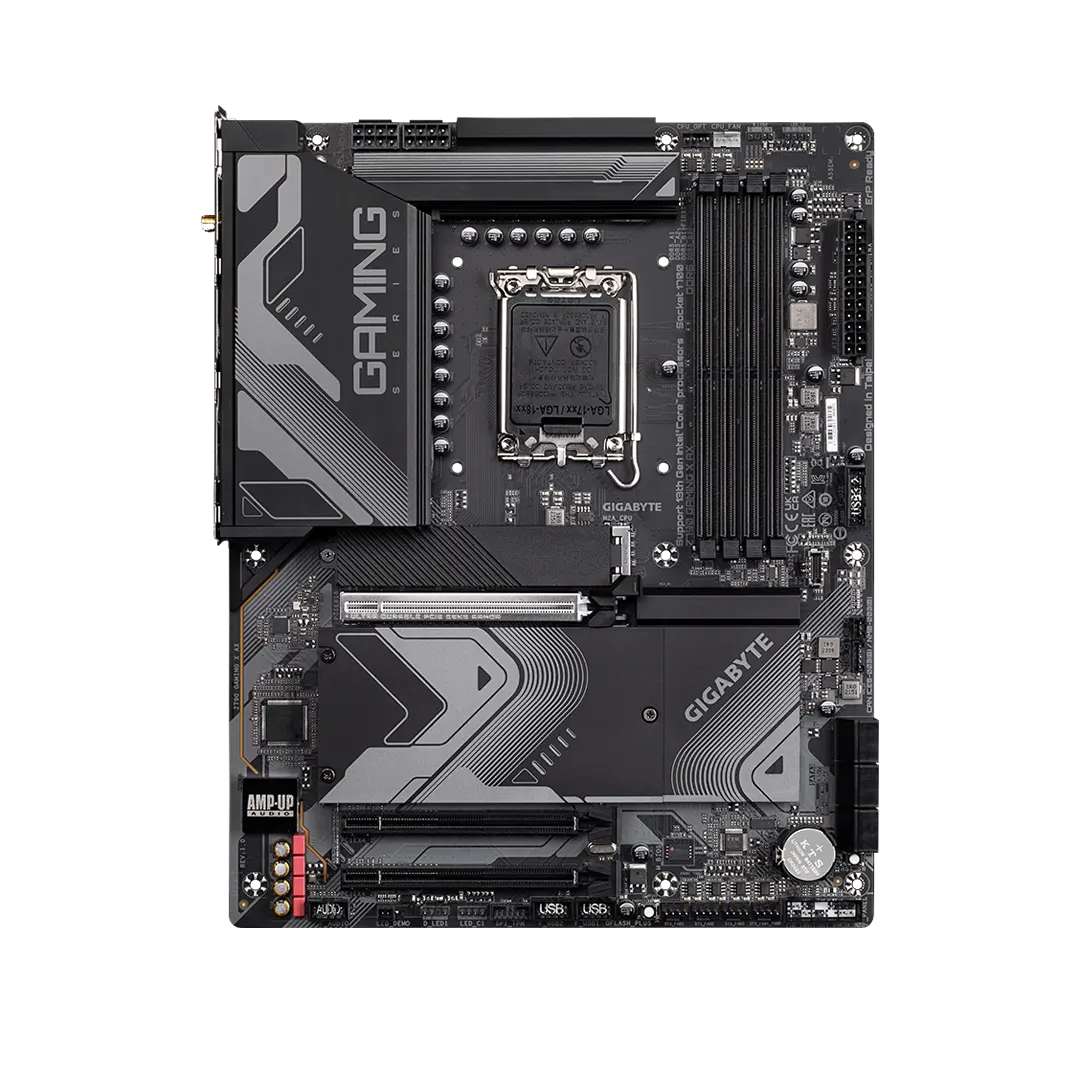

N.B. Image may vary with product
Are you looking for an ATX motherboard that's built for gaming and has the latest technology to give you an edge?
GIGABYTE Z790 GAMING X AX 13th and 12th Gen ATX Motherboard is designed to provide you with the best gaming experience, with next-gen storage, fast networks, and smart fan features.
Powerful Performance: The GIGABYTE Z790 GAMING X AX 13th and 12th Gen ATX Motherboard supports both 13th and 12th Gen Processors (LGA1700) and comes with 4*PCIe 4.0 x4 M.2 Connectors for next-generation storage.
Fast Networks: This Z790 GAMING motherboard features 2.5GbE LAN & Wi-Fi 6E 802.11ax for fast networks.
Smart Fan 6: This motherboard also comes with Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP for improved cooling.
Extended Connectivity: The GIGABYTE Z790 GAMING X AX 13th and 12th Gen ATX Motherboard also offers extended connectivity with DP, HDMI, Front USB-C® 10Gb/s, and Rear USB-C® 20Gb/s.
The latest price of GIGABYTE Z790 GAMING X AX 13th and 12th Gen ATX Motherboard in Bangladesh is ৳ 34,500. You can buy the GIGABYTE Z790 GAMING X AX 13th and 12th Gen ATX Motherboard, at the best price from our website or visit any of your nearest Binary Logic showroom. Follow us on Facebook For Regular updates & offers.
| CPU | 1.LGA1700 socket: Support for the 13th and 12th Generation Intel Core, Pentium® Gold and Celeron Processors 2. L3 cache varies with CPU |
| Chipset | Intel Z790 Express Chipset |
| Memory | 1. Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) / 6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules 2. 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory 3. Dual channel memory architecture 4.Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) 5. Support for non-ECC Un-buffered DIMM 1Rx8/ 2Rx8/1Rx16 memory modules 6.Support for Extreme Memory Profile (XMP) memory modules |
| Onboard Graphics | Integrated Graphics Processor Intel HD Graphics support: 1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.3. 2. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 * Support for DisplayPort 1.2 version and HDCP 2.3 |
| Audio | 1. Realtek® Audio CODEC 2. High Definition Audio 3. 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. 4.Support for S/PDIF Out |
| LAN | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless Communication module |
Intel Wi-Fi 6E AX210 (PCB rev. 1.0) 1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands 2. BLUETOOTH 5.3 3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate Intel® Wi-Fi 6E AX211 (PCB rev. 1.1) 1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands 2. BLUETOOTH 5.3 3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate |
| Expansion Slots | CPU: 1.1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 1. 1 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1) 2. 1 x PCI Express x16 slots, supporting PCIe 3.0 and running at x4 (PCIEX4_2) |
| Storage Interface | CPU: 1.1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1.2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB) 2.1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB) 3.6 x SATA 6Gb/s connectors * Refer to "2-8 Internal Connectors, " for the installation notices for the M.2 and SATA connectors. RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| USB | Chipset: 1.1 x USB Type-C port on the back panel, with USB 3.2 Gen 2x2 support 2.1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header 3.2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 4.5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) Chipset+2 USB 2.0 Hubs: 1.8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
| Internal I/O Connectors | 1.1 x 24-pin ATX main power connector 2.2 x 8-pin ATX 12V power connectors 3.1 x CPU fan header 4.1 x water cooling CPU fan header 5.3 x system fan headers 6.1 x system fan/water cooling pump header 7.2 x addressable LED strip headers 8.2 x RGB LED strip headers 9.4 x M.2 Socket 3 connectors 10.6 x SATA 6Gb/s connectors 11.1 x front panel header 12.1 x front panel audio header 13.1 x USB Type-C header, with USB 3.2 Gen 2 support 14.1 x USB 3.2 Gen 1 header 15.2 x USB 2.0/1.1 headers 16.2 x Thunderbolt add-in card connectors 17.1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 18.1 x Q-Flash Plus button 19.1 x reset button 20.1 x reset jumper 21.1 x Clear CMOS jumper |
| Back Panel Connectors | 1.4 x USB 2.0/1.1 ports 2.2 x SMA antenna connectors (2T2R) 3.2 x USB 3.2 Gen 2 Type-A ports (red) 4.1 x DisplayPort 5.1 x HDMI 2.0 port 6.3 x USB 3.2 Gen 1 ports 7.1 x USB Type-C port, with USB 3.2 Gen 2x2 support 8.1 x RJ-45 port 9.1 x optical S/PDIF Out connector 10.2 x audio jacks |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | 1.Voltage detection 2.Temperature detection 3.Fan speed detection 4.Water cooling flow rate detection 5.Fan fail warning 6.Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. |
| BIOS | 1.1 x 256 Mbit flash 2.Use of licensed AMI UEFI BIOS 3.PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup |
| Bundled Software | Bundled Software Norton Internet Security (OEM version) LAN bandwidth management software |
| Operating System | Support for Windows 11 64-bit Support for Windows 10 64-bit |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
Q: What processor does this motherboard support?
A: This motherboard supports 13th and 12th Gen Processors (LGA1700)
Q: What are the network connections available?
A: This motherboard supports 2.5GbE LAN & Wi-Fi 6E 802.11ax.
