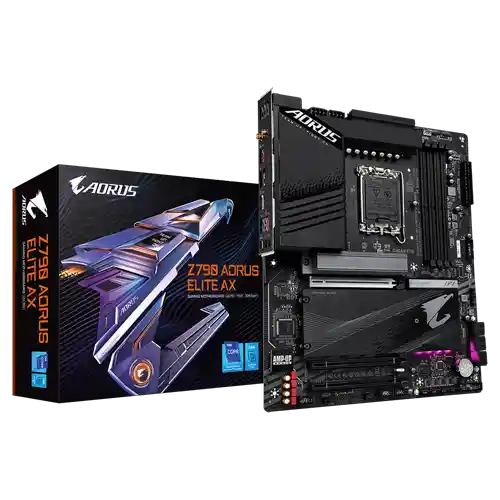

N.B. Image may vary with product
Are you looking for a top-of-the-line motherboard that supports the latest generation of processors?
CPU Compatibility: LGA1700 socket supporting 13th and 12th Gen Intel Core, Pentium Gold, and Celeron Processors.
DDR5 Memory Support: Optimize system performance with support for DDR5 memory modules up to 7600MHz (O.C.), offering high-speed and efficient multitasking capabilities.
Integrated Graphics: Intel HD Graphics support with HDMI 2.0 and DisplayPort 1.2 for stunning visuals and high-resolution displays.
Realtek Audio CODEC: High Definition Audio with 2/4/5.1/7.1-channel configurations, offering an immersive audio experience for gaming and multimedia.
Realtek 2.5GbE LAN: Reliable and high-speed LAN connectivity for seamless online gaming and content streaming.
Intel Wi-Fi 6E AX211: Cutting-edge Wi-Fi technology supporting 2.4/5/6 GHz bands with Bluetooth 5.3, delivering fast and stable wireless connectivity.
PCIe Expansion Slots: One PCIe 5.0 x16 slot for graphics card optimization and two PCIe 4.0 x16 slots supporting AMD CrossFire™ technology.
Storage Interfaces: Multiple M.2 connectors, SATA 6Gb/s connectors, and RAID support for NVMe SSD and SATA storage devices.
USB Connectivity: USB Type-C ports with Gen 2x2 and Gen 2 support, ensuring fast data transfer and device compatibility.
Comprehensive I/O Connectors: A multitude of internal I/O connectors, including fan headers, RGB headers, USB headers, and Thunderbolt™ add-in card connectors.
Back Panel Connectivity: A feature-rich back panel with USB ports, HDMI, DisplayPort, LAN, audio jacks, and more for convenient connectivity.
BIOS and Unique Features: AMI UEFI BIOS with features like Q-Flash Plus, Smart Backup, RGB Fusion, Game Boost, and more for enhanced customization and control.
APP Center: Centralized control with GIGABYTE's APP Center, offering applications like @BIOS, EasyTune, Fast Boot, and System Information Viewer.
Bundled Software: Comes bundled with Norton Internet Security (OEM version) and Realtek Gaming LAN Bandwidth Control Utility for added security and control.
Operating System Support: Compatible with Windows 11 64-bit and Windows 10 64-bit for the latest gaming and computing experiences.
Form Factor: ATX Form Factor (30.5cm x 24.4cm) for compatibility with a wide range of PC cases.
The latest price of GIGABYTE Z790 AORUS ELITE AX 13TH and 12TH GEN MOTHERBOARD in Bangladesh is a Special Price of 41,000 ৳. You can buy the GIGABYTE Z790 AORUS ELITE AX 13TH and 12TH GEN MOTHERBOARD at the best price from our website or visit find your nearest Binary Logic showroom. Follow us on Facebook For Regular updates & offers.
About US: Binary Logic is an ICT-based company established in 2001. Binary Logic deals with POS (Point of Sale) business, PC business, License software, and server solution business. Read More
| CPU | LGA1700 socket: Support for the 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with the CPU (Please refer to "CPU Support List" for more information.) |
| Chipset | Intel Z790 Express Chipset |
| Memory | Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer to "Memory Support List" for more information.) |
| Onboard Graphics | Integrated Graphics Processor-Intel® HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.3. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 * Support for DisplayPort 1.2 version and HDCP 2.3 (Graphics specifications may vary depending on CPU support.) |
| Audio | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless Communication module | Intel® Wi-Fi 6E AX211 WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate * Actual data rate may vary depending on the environment and equipment. |
| Expansion Slots | CPU: 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1, PCIEX4_2) Support for AMD CrossFire™ technology (PCIEX16 and PCIEX4) |
| Storage Interface |
CPU: RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| USB | Chipset: 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) Chipset+2 USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 4 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt™ add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x reset button 1 x Q-Flash Plus button 1 x Clear CMOS button 1 x reset jumper 1 x Clear CMOS jumper |
| Back Panel Connectors | 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support 2 x USB 3.2 Gen 2 Type-A ports (red) 3 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 2 x SMA antenna connectors (2T2R) 1 x HDMI 2.0 port 1 x DisplayPort 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install |
| Bundled Software | Norton® Internet Security (OEM version) Realtek® Gaming LAN Bandwidth Control Utility |
| Operating System | Support for Windows 11 64-bit Support for Windows 10 64-bit |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
Q: What processors are supported by the Z790 AORUS ELITE AX motherboard?
A: The motherboard supports 13th and 12th Gen Intel Core, Pentium Gold, and Celeron Processors. Please refer to the "CPU Support List" for detailed information.
Q: Can I use DDR5 memory modules on this motherboard?
A: Yes, the motherboard supports DDR5 memory modules with speeds up to 7600MHz (O.C.). Check the "Memory Support List" for compatible modules.
