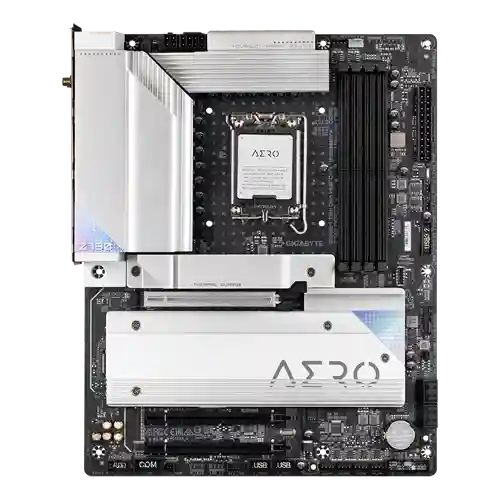

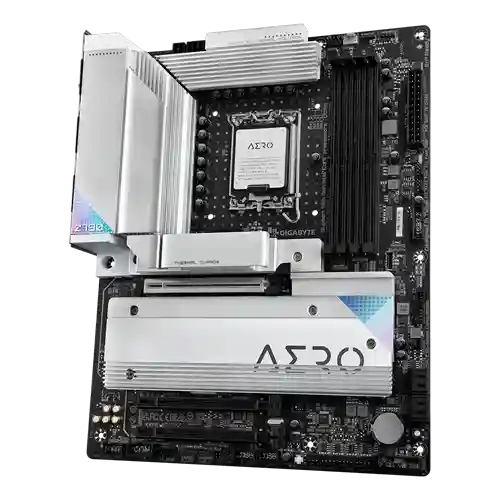

N.B. Image may vary with product
13th and 12th Gen Intel Core Support: The LGA1700 socket ensures compatibility with the latest 13th and 12th Gen Intel Core processors, Pentium® Gold, and Celeron® Processors, providing the foundation for a high-performance gaming .
DDR5 Memory Support: With support for DDR5 memory modules up to 7600(O.C.) MHz, experience faster data transfer rates and improved multitasking capabilities. The four DDR5 DIMM sockets support up to 128 GB, making this motherboard ideal for memory-intensive applications.
Integrated Graphics Processor: The motherboard features Intel HD Graphics support with a USB Type-C port supporting USB 3.2 Gen 2 and DisplayPort video outputs. The HDMI port supports a maximum resolution of 4096x2160@60 Hz, making it suitable for high-quality visuals.
High-Quality Audio: Equipped with the Realtek ALC1220-VB CODEC, the motherboard delivers high-definition audio with support for 2/4/5.1/7.1-channel configurations. The back panel line-out jack supports DSD audio for an immersive audio experience.
Advanced Networking: The Intel 2.5GbE LAN chip provides high-speed LAN connectivity, and the Intel Wi-Fi 6E AX211 module offers Wi-Fi support for various frequency bands, ensuring fast and reliable wireless communication.
PCIe 4.0 Expansion Slots: The motherboard features PCIe 5.0 and PCIe 4.0 expansion slots, supporting AMD CrossFire technology for multi-GPU setups. M.2 connectors for PCIe 5.0 and PCIe 4.0 SSDs ensure fast and efficient storage solutions.
USB Connectivity: With USB Type-C ports, USB 3.2 Gen 2 support, and USB 2.0/1.1 ports, the motherboard provides versatile and high-speed connectivity options for various peripherals.
Smart Features: The motherboard includes Gigabyte Control Center (GCC) support, offering applications for control. Additional features like Q-Flash, Q-Flash Plus, and Smart Backup enhance management and reliability.
The latest price of Gigabyte Z790 AERO G 13th Gen DDR5 ATX Gaming Motherboard in Bangladesh is ৳ 0. You can buy the Gigabyte Z790 AERO G 13th Gen DDR5 ATX Gaming Motherboard, at the best price from our website or visit your nearest Binary Logic showroom. Follow us on Facebook For Regular updates & offers.
| CPU | LGA1700 socket: Support for the 13th and 12th Generation Intel® Core, Pentium Gold and Celeron Processors* L3 cache varies with the CPU * Please refer to "CPU Support List" for more information. |
| Chipset | Intel® Z790 Express Chipset |
| Memory | Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules 4 x DDR5 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer to "Memory Support List" for more information.) |
| Onboard Graphics | Integrated Graphics Processor-Intel HD Graphics support: 1 x USB Type-C port, supporting USB 3.2 Gen 2 and DisplayPort video outputs and a maximum resolution of 4096x2304@60 Hz * Support for drawing tablets and 20V@3A of power delivery. * Support for DisplayPort 1.4 version and HDR. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.3. (Graphics specifications may vary depending on CPU or graphics card support.) |
| Audio | Realtek® ALC1220-VB CODEC * The back panel line out jack supports DSD audio. High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out |
| LAN | Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless Communication module | module Intel® Wi-Fi 6E AX211 WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate (Actual data rate may vary depending on environment and equipment.) |
| Expansion Slots | CPU: 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot shares bandwidth with the M2C_CPU connector. The PCIEX16 slot operates at up to x8 mode when a device is installed in the M2C_CPU connector * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1, PCIEX4_2) Support for AMD CrossFire&trade technology (PCIEX16 and PCIEX4) |
| Storage Interface | CPU: 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0 x4/x2 SSD support) (M2C_CPU) 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB) 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| USB | Chipset: 2 x USB Type-C® ports, with USB 3.2 Gen 2x2 support (1 port on the back panel, 1 port available through the internal USB header) 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 2 x USB 3.2 Gen 1 ports available through the internal USB header 2 x USB 2.0/1.1 ports on the back panel Chipset+USB 3.2 Gen 1 Hub: 4 x USB 3.2 Gen 1 ports on the back panel Chipset+USB 2.0 Hub: 4 x USB 2.0/1.1 ports available through the internal USB headers |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 4 x fan headers 2 x fan/water cooling pump headers 2 x addressable LED strip headers 2 x RGB LED strip headers 5 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x noise detection header 2 x Thunderbolt&trade add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x Q-Flash Plus button 1 x reset button 1 x reset jumper 2 x temperature sensor headers 1 x Clear CMOS jumper |
| Back Panel Connectors | 2 x USB 2.0/1.1 ports 2 x SMA antenna connectors (2T2R) 4 x USB 3.2 Gen 1 ports 1 x DisplayPort In port 1 x HDMI 2.0 port 2 x USB 3.2 Gen 2 Type-A ports (red) 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support 1 x USB Type-C® port (DisplayPort), with USB 3.2 Gen 2 support 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. Noise detection |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup |
| Bundled Software | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Operating | Support for Windows 11 64-bit Support for Windows 10 64-bit |
| Form Factor | ATX Form Factor 30.5cm x 24.4cm |
Q: Is this motherboard compatible with Windows 11?
A: Yes, the Gigabyte Z790 AERO G motherboard is fully compatible with both Windows 11 64-bit and Windows 10 64-bit operating systems.
Q: Can I use DDR4 memory modules with this motherboard?
A: No, this motherboard supports DDR5 memory modules exclusively. Refer to the "Memory Support List" for compatible modules and configurations.
