N.B. Image may vary with product
| Component | Specification |
|---|---|
| CPU | LGA1851 socket: Support for Intel ® Core&trade Ultra ProcessorsL3 cache varies with CPU |
| Chipset | Intel ® B860 Express Chipset |
| Memory | Support for DDR5 9200(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 5600 MT/s memory modules4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of memoryDual channel memory architectureSupport for ECC and non-ECC Un-buffered DIMM memory modulesSupport for Extreme Memory Profile (XMP) modules |
| Onboard Graphics | Integrated Intel® HD Graphics1 x USB4® USB Type-C® (USB4 & DisplayPort, 3840x2160@144 Hz)1 x DisplayPort (3840x2160@144 Hz, DP 2.1)1 x HDMI (4096x2160@60 Hz, HDMI 2.1)1 x Front HDMI (1920x1080@30 Hz, HDMI 1.4)Supports up to quad-display |
| Audio | Realtek® Audio CODEC, High Definition Audio2/4/5.1/7.1-channel supportSupports S/PDIF Out |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless | Intel® Wi-Fi 6E AX211 (PCB rev. 1.0) / Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.1)WiFi 6E (2.4/5/6 GHz), Bluetooth 5.3, 11ax 160MHz support |
| Expansion Slots | 1 x PCIe 5.0 x16 (CPU, supports GPU or NVMe SSD)1 x PCIe 4.0 x4 (Chipset) |
| Storage | 1 x M.2 PCIe 5.0 x4/x2 (CPU)1 x M.2 PCIe 4.0 x4/x2 (Chipset)1 x M.2 PCIe 4.0 x4/x2 (Chipset)4 x SATA 6Gb/s (RAID 0/1/5/10) |
| USB Ports | CPU:1 x USB4® USB Type-C® (Back Panel)Chipset:1 x USB Type-C® (USB 3.2 Gen 2, Internal Header)2 x USB 3.2 Gen 2 Type-A (Back Panel, Red)2 x USB 3.2 Gen 1 (Internal Header)4 x USB 3.2 Gen 1 (Back Panel)Chipset+USB 2.0 Hub:8 x USB 2.0/1.1 (4 Back Panel, 4 Internal) |
| Internal I/O Connectors | 1 x 24-pin ATX power connector2 x 8-pin ATX 12V power connectors1 x CPU fan header1 x CPU fan/water pump header3 x fan headers1 x fan/water pump header3 x Addressable RGB Gen2 headers1 x RGB LED header3 x M.2 connectors4 x SATA 6Gb/s connectors1 x Front panel header1 x Front panel audio header1 x USB Type-C® header (USB 3.2 Gen 2)1 x USB 3.2 Gen 1 header2 x USB 2.0/1.1 headers2 x Thunderbolt&trade add-in card connectors1 x TPM header1 x HDMI port (varies by CPU)1 x Power button1 x Reset button1 x Q-Flash Plus button1 x Reset jumper1 x Clear CMOS jumper |

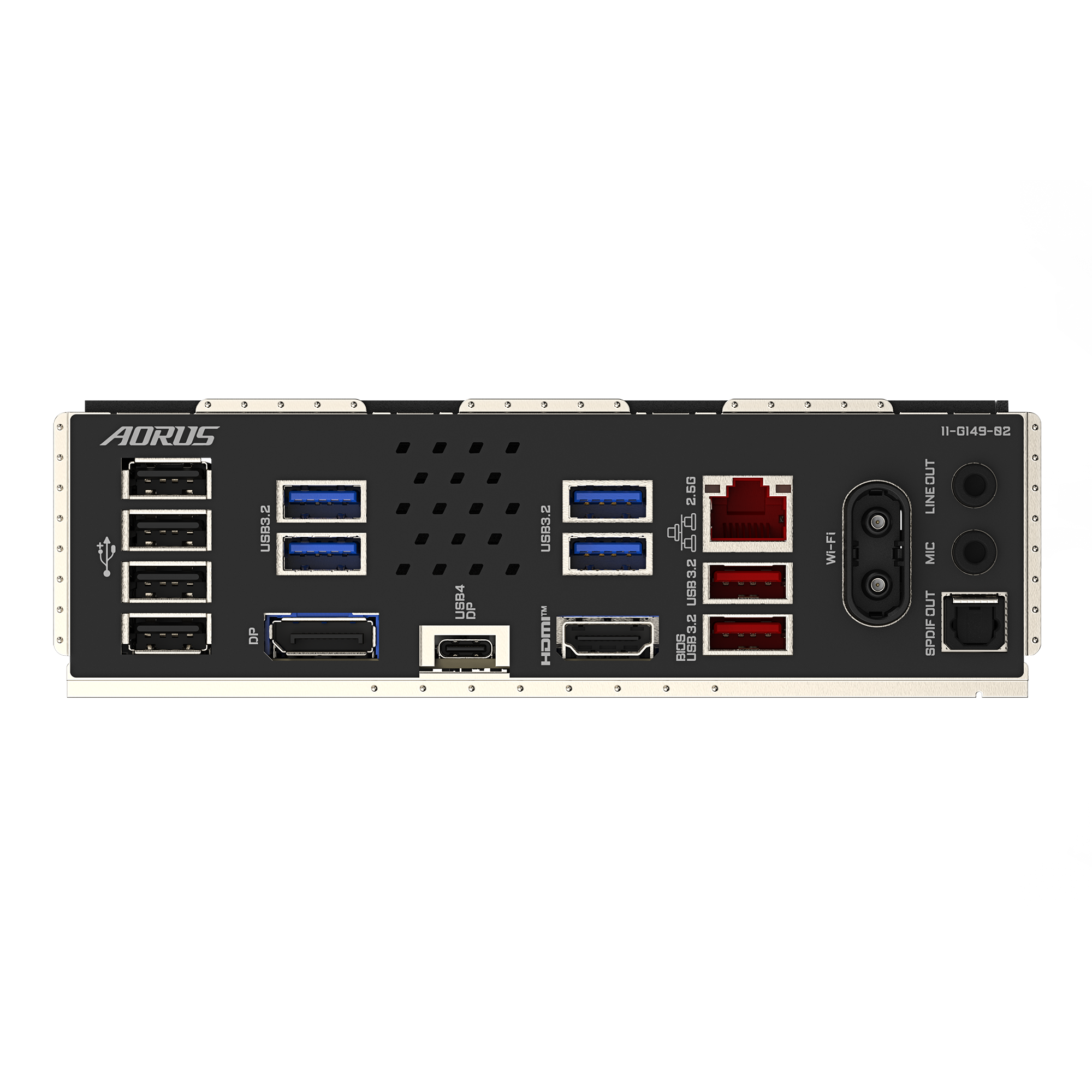

| Back Panel Connectors | 4 x USB 2.0/1.1 ports4 x USB 3.2 Gen 1 ports1 x DisplayPort (varies by CPU)1 x USB4® USB Type-C® (DisplayPort)1 x HDMI (varies by CPU)1 x RJ-45 LAN port2 x USB 3.2 Gen 2 Type-A (Red)2 x Antenna connectors (2T2R)2 x Audio jacks1 x Optical S/PDIF Out |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage, Temperature, Fan speed, Water cooling flow rate detectionFan fail warning, Fan speed control (depends on fan/pump) |
| BIOS | 1 x 256 Mbit flashLicensed AMI UEFI BIOS (PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0) |
| Unique Features | Support for GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus, Smart Backup |
| Bundled Software | Norton® Internet Security (OEM), LAN bandwidth management software |
| Operating | Windows 11 64-bit |
| Form Factor | Micro ATX (24.4cm x 24.4cm) |
