N.B. Image may vary with product

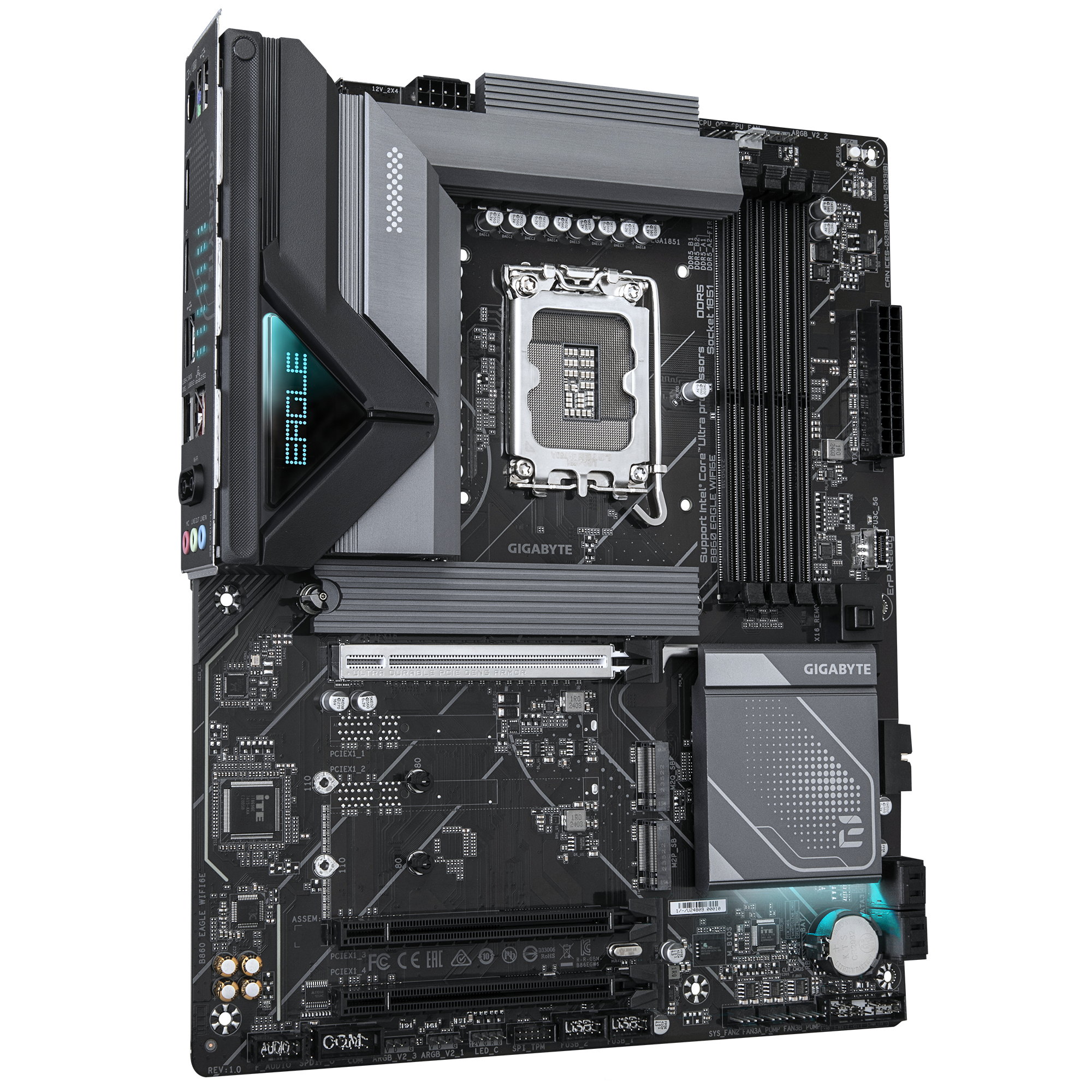

B860 EAGLE WIFI6E
Experience the pinnacle of performance, seamless connectivity, superior thermal management, and DIY-friendly design with the B860 EAGLE WIFI6E motherboard. Engineered for enthusiasts and gamers alike, this board brings cutting-edge features to optimize your computing experience.
Robust Power Delivery:
Memory & Expansion:
Product specifications and appearance may vary by region. Please check with local retailers for the latest details. Images shown are for reference only.
| Component | Specification |
|---|---|
| CPU | LGA1851 socket: Supports Intel® Core&trade Ultra Processors |
| (Check GIGABYTE's website for the latest CPU support list.) | |
| L3 cache varies with CPU | |
| Chipset | Intel® B860 Express Chipset |
| Memory | Supports DDR5 9066(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C) / 7400(O.C) / 7200(O.C) / 7000(O.C) / 6800(O.C) / 6600(O.C) / 6400 / 5600 MT/s memory modules |
| 4 x DDR5 DIMM sockets (Max 256GB, 64GB per DIMM) | |
| Dual-channel memory architecture | |
| Supports ECC and non-ECC Un-buffered DIMM modules (ECC operates in non-ECC mode) | |
| Supports XMP memory modules | |
| Onboard Graphics | Intel® HD Graphics |
| HDMI (4096x2160@60 Hz, HDMI 2.1, HDCP 2.3) | |
| DisplayPort (3840x2160@144 Hz, DP 2.1) | |
| Audio | Realtek® Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel |
| S/PDIF Out support | |
| LAN | Realtek® 2.5GbE LAN chip (2.5Gbps/1Gbps/100Mbps) |
| Wireless | Intel® Wi-Fi 6E AX211 (Rev. 1.0) or Realtek® Wi-Fi 6E RTL8852CE (Rev. 1.1) |
| Bluetooth 5.3, 11ax 160MHz wireless standard | |
| Expansion Slots | CPU: 1 x PCIe 5.0 x16 slot (Graphics card or NVMe SSD only) |
| Chipset: 2 x PCIe 4.0 x1 slots | |
| Storage | CPU: 1 x M.2 PCIe 5.0 x4/x2 (M2A_CPU) |
| Chipset: 2 x M.2 PCIe 4.0 x4/x2 (M2Q_SB & M2P_SB) | |
| 4 x SATA 6Gb/s connectors (RAID 0, 1, 5, 10 support) | |
| USB Ports | Back Panel: 1 x USB Type-C® (USB 3.2 Gen 2x2), 1 x USB 3.2 Gen 2 Type-A, 4 x USB 2.0/1.1 |
| Internal: 1 x USB Type-C® (USB 3.2 Gen 1), 1 x USB 3.2 Gen 1 header, 2 x USB 3.2 Gen 1, 4 x USB 2.0/1.1 | |
| Internal Connectors | 1 x 24-pin ATX, 1 x 8-pin ATX 12V, 1 x CPU fan, 1 x CPU fan/water pump, 2 x fans, 2 x fan/water pump headers |
| 3 x Addressable RGB Gen2 headers, 1 x RGB LED strip header | |
| 3 x M.2 connectors, 4 x SATA 6Gb/s, 1 x front panel, 1 x front audio, 1 x S/PDIF Out | |
| 1 x USB Type-C header (USB 3.2 Gen 1), 1 x USB 3.2 Gen 1 header, 2 x USB 2.0 headers | |
| 1 x TPM header, 1 x serial port, 1 x Q-Flash Plus button, 1 x reset jumper, 1 x Clear CMOS jumper | |
| Back Panel | 1 x PS/2 keyboard/mouse port, 1 x HDMI, 1 x DisplayPort, 1 x USB Type-C® (USB 3.2 Gen 2x2), 1 x USB 3.2 Gen 2 Type-A, 4 x USB 2.0/1.1 |
| 2 x antenna connectors, 1 x RJ-45 (2.5GbE LAN), 3 x audio jacks | |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage, temperature, fan speed, water cooling flow rate detection, fan fail warning, fan speed control |
| BIOS | 1 x 256 Mbit flash, AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | Support for GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus, Smart Backup |
| Bundled Software | Norton® Internet Security (OEM), LAN bandwidth management software |
| Operating | Windows 11 64-bit, Windows 10 64-bit (Intel® NPU driver only supported on Windows 11) |
| Form Factor | ATX Form Factor 30.5cm x 24.4cm |
