N.B. Image may vary with product

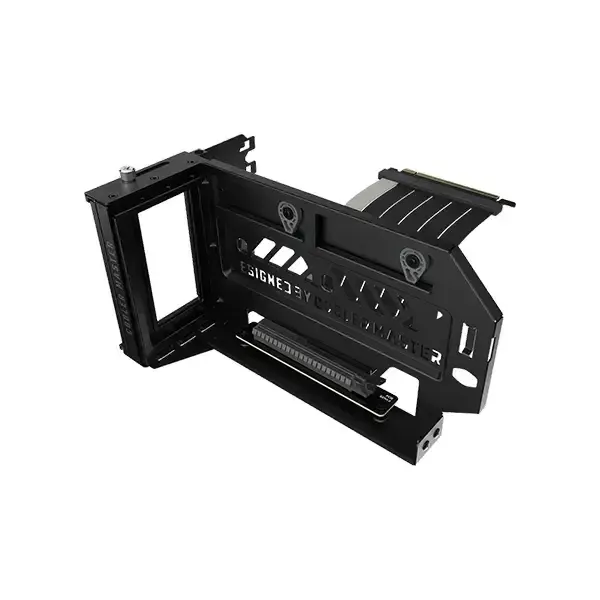

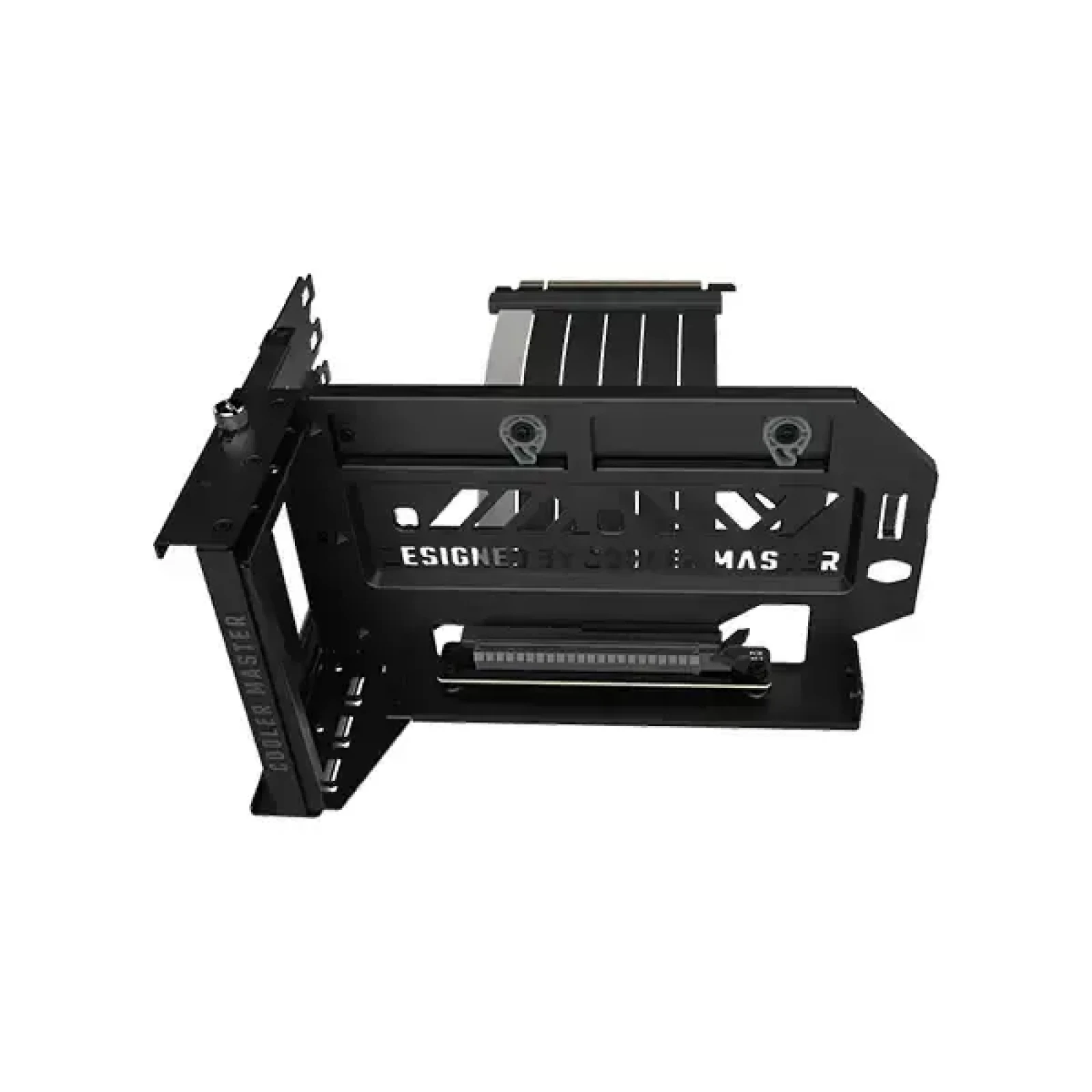

Supporting cases ranging in size from m-ATX to ATX, and featuring a removable adjustable GPU bracket, this remastered design allows unprecedented compatibility with various builds and setups. A PCIe 4.0 riser cable is included to assist the installation process and ensure high efficiency at uncompromised speeds.
Cooler Master Riser Cable PCIe 4.0 Included
Allows for efficient data transmission and connectivity
between the latest hardware components
EFFORTLESSLY SHOWCASE YOUR GRAPHICS CARD
Bring the best out of your components by showing off your GPU
Premium Materials
42%
ATX & m-ATX Compatibility
Designed for both ATX and mATX cases, this accessory is compatible with the latest GPUs available on the market
The newly revised Vertical Graphics Card Holder Kit fits all standard ATX chassis, now providing even more options for adjusting graphics card position.
Compatibility with m-ATX cases is guaranteed thanks to the brand new design that simply requires 4 PCi slots for installation.
GPU connection to external monitors is facilitated due to the modular design, now 100% adjustable according to preference and needs.
The fully ventilated design is specially designed to allow unrestricted airflow for "flow-through" GPU coolers
| Specification | Details |
|---|---|
| Model Number | Black: MCA-U000R-KFVK03, White: MCA-U000R-WFVK03 |
| Color(s) | Black / Gray, White / Gray |
| Dimensions (L × W × H) | GFX Holder Kit: 249 × 148.1 × 141.8 mm (Closed) GFX Holder Kit: 305 × 178.1 × 141.8 mm (Open) Riser Cable: 165 mm (6.19 in) |
| Supported Chassis Type | E-ATX, ATX, Micro-ATX (May interfere with rear panel components. Max CPU cooler height: 70 mm) |
| Supported Graphics Cards | Any length, up to 3 slots wide |
| Riser Cable Model | PCIe 4.0 x16 Riser Cable |
| Compatibility | PCIe 4.0 and older |
| CE Certification Number | BKC210933AC |
| PCB / Wire UL Numbers | E1895721 / E252840 |
| Component Materials | PCBA, Silver Plated Copper Wire (30 AWG) |
| Insulation Materials | PE, TPE |
| Other Materials | ABS, PP, SGCC Steel, Nickel, Gold, Brass |
| Connectors | PCIe x16 Male to PCIe x16 90° Female |
| Rated Working Voltage / Current | DC 12V / 5A |
| Operating Temperature | -20°C to +100°C |
| Required PCI Slots | Minimum 4 PCI slots required for mounting |
| Weight | 0.81 kg |
| Series | Others |
| Category | MasterAccessory &ndash Case Accessory |
