N.B. Image may vary with product
CPU Compatibility: Supports Intel Core i7/i5/i3 processors and Intel Pentium/Celeron processors in the LGA1150 package.
Memory Support: Dual Channel DDR3 1066/1333/1600 with 2 DDR3 DIMM Memory Slots. Max. Supports up to 16 GB of Memory. Each DIMM supports non-ECC 512MB/1/2/4/8 GB DDR3 module.
Integrated Video: Supports DX11.1, providing enhanced graphics capabilities based on CPU model.
Storage Options: Supports AHCI with 2 x SATA II (3Gb/s) and 2 x SATA III (6Gb/s) for flexible storage configurations.
LAN: Realtek GbE LAN for reliable and high-speed networking, supporting 10/100/1000 Mb/s auto-negotiation.
Audio Enhancement: ALC887 Audio Codec provides 5.1 Channels of High Definition Audio for an immersive audio experience.
USB Connectivity: 2 x USB 3.0 ports on the rear I/Os and 6 x USB 2.0 ports (2 on the rear I/Os and 4 via internal headers) for convenient device connectivity.
Expansion Slots: 1 x PCIe 2.0 x1 and 1 x PCIe 2.0 x16 Slot (x16 mode) for expandability.

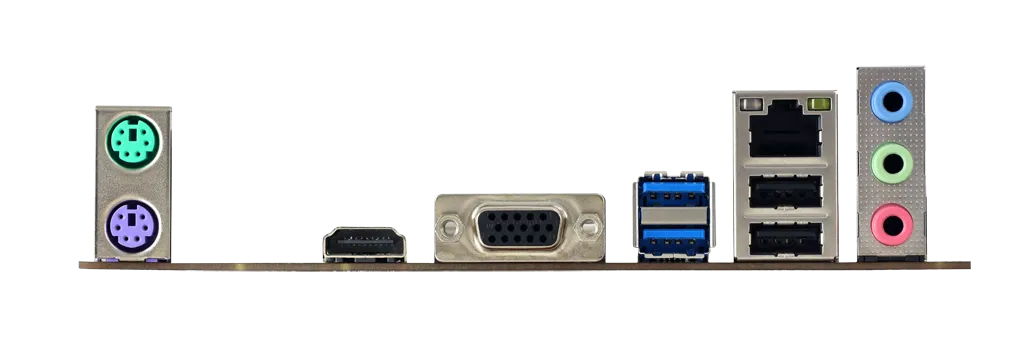

I/O Ports: Rear I/O includes 1 x PS/2 Keyboard, 1 x PS/2 Mouse, 1 x VGA Port, 1 x HDMI Port, 2 x USB 3.2 Gen1 Ports, 2 x USB 2.0 Ports, 1 x LAN port, and 3 x Audio Jack.
Internal Connectors: Features internal connectors such as 2 x SATA II (3Gb/s), 2 x SATA III (6Gb/s), USB 2.0 Header, 4-pin Power Connector, 24-pin Power Connector, CPU Fan Connector, System Fan Connector, Front Panel Header, Front Audio Header, Internal Stereo Speaker Header, Clear CMOS Header, and COM Port Header.
Hardware Monitoring: Monitors CPU/System Temperature, Fan Speed, and System Voltage. Smart/Manual CPU Fan Control for customized cooling.
Dimension: Micro ATX Form Factor with dimensions of 17cm x 19cm (W x L), suitable for compact systems.
OS Support: Compatible with Windows 7/8/8.1/10. Biostar reserves the right to add or remove support for any OS with or without notice.
Bundle Software: Includes BIO-Remote2 and Smart Speed LAN for added functionality.
Accessories: Comes with 2 x SATA Cables, 1 x I/O Shield, 1 x DVD Driver, and 1 x Quick Guide.
Features: Supports Solid capacitor and BIO-FLASHER for enhanced reliability and firmware updates.
The latest price of Biostar H81MHV3 3.0 Motherboard in Bangladesh is ৳ 6,600. You can buy the Biostar H81MHV3 3.0 Motherboard at the best price from our website or visit any find your nearest Binary Logic showrooms. Follow us on Facebook For Regular updates & offers.
Binary Logic is the official partner of Biostar in Bangladesh. So we offer the best price for the Biostar Motherboard. Buy Now.
| Chipset | Intel H81 |
| CPU SUPPORT | Support Intel Core i7/ i5/ i3 processors and Intel Pentium processors/ Intel Celeron processors in the LGA1150 package * Please refer to www.biostar.com.tw for the CPU support list. |
| MEMORY | Supports Dual Channel DDR3 1066/ 1333/ 1600 2 x DDR3 DIMM Memory Slot, Max. Supports up to 16 GB of Memory Each DIMM supports non-ECC 512MB/ 1/ 2/ 4/ 8 GB DDR3 module * Please refer to www.biostar.com.tw for the Memory support list. |
| INTEGRATED VIDEO | By CPU model Supports DX11.1 |
| STORAGE | Supports AHCI 2 x SATA II (3Gb/s) 2 x SATA III (6Gb/s) |
| LAN | Realtek GbE LAN 10/ 100/ 1000 Mb/s auto-negotiation, Half / Full duplex capability |
| AUDIO CODEC | ALC887 5.1 Channels, High Definition Audio |
| USB | 2 x USB 3.0 ports (2 on the rear I/Os) 6 x USB 2.0 ports (2 on the rear I/Os and 4 via internal headers) |
| EXPANSION SLOT | 1 x PCIe 2.0 x1 1 x PCIe 2.0 x16 Slot (x16 mode) |
| REAR I/O | 1 x PS/2 Keyboard 1 x PS/2 Mouse 1 x VGA Port 1 x HDMI Port 2 x USB 3.2 Gen1 Ports 2 x USB 2.0 Ports 1 x LAN port 3 x Audio Jack |
| INTERNAL I/O | 2 x SATA II (3Gb/s) 2 x SATA III (6Gb/s) 2 x USB 2.0 Header (each header supports 2 USB 2.0 ports) 1 x 4-pin Power Connector 1 x 24-pin Power Connector 1 x CPU Fan Connector 1 x System Fan Connector 1 x Front Panel Header 1 x Front Audio Header 1 x Internal Stereo Speaker Header 1 x Clear CMOS Header 1 x COM Port Header |
| H/W MONITORING | CPU / System Temperature Monitoring CPU / System Fan Monitoring Smart / Manual CPU Fan Control System Voltage Monitoring |
| DIMENSION | Micro ATX Form Factor Dimension: 17cm x 19cm ( W x L ) |
| OS SUPPORT | Supports Windows 7 / 8 / 8.1 /10 ※Biostar reserves the right to add or remove support for any OS with or without notice. |
| BUNDLE SOFTWARE | BIO-Remote2 Smart Speed LAN |
| ACCESSORIES | 2 x SATA Cable 1 x I/O Shield 1 x DVD Driver 1 x Quick Guide |
| FEATURES | Supports Solid capacitor BIO-FLASHER |
Q: What processors are compatible with the Biostar H81MHV3 3.0 motherboard?
A: The motherboard supports Intel Core i7/i5/i3 processors and Intel Pentium/Celeron processors in the LGA1150 package.
Q: What is the maximum memory capacity supported?
A: The motherboard supports Dual Channel DDR3 with a maximum capacity of 16GB.
